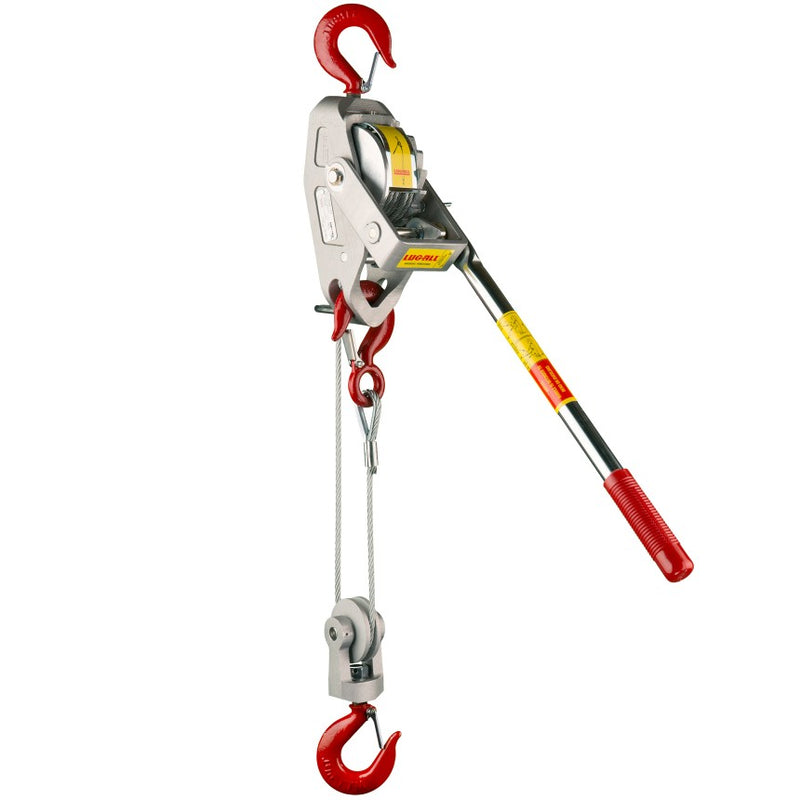

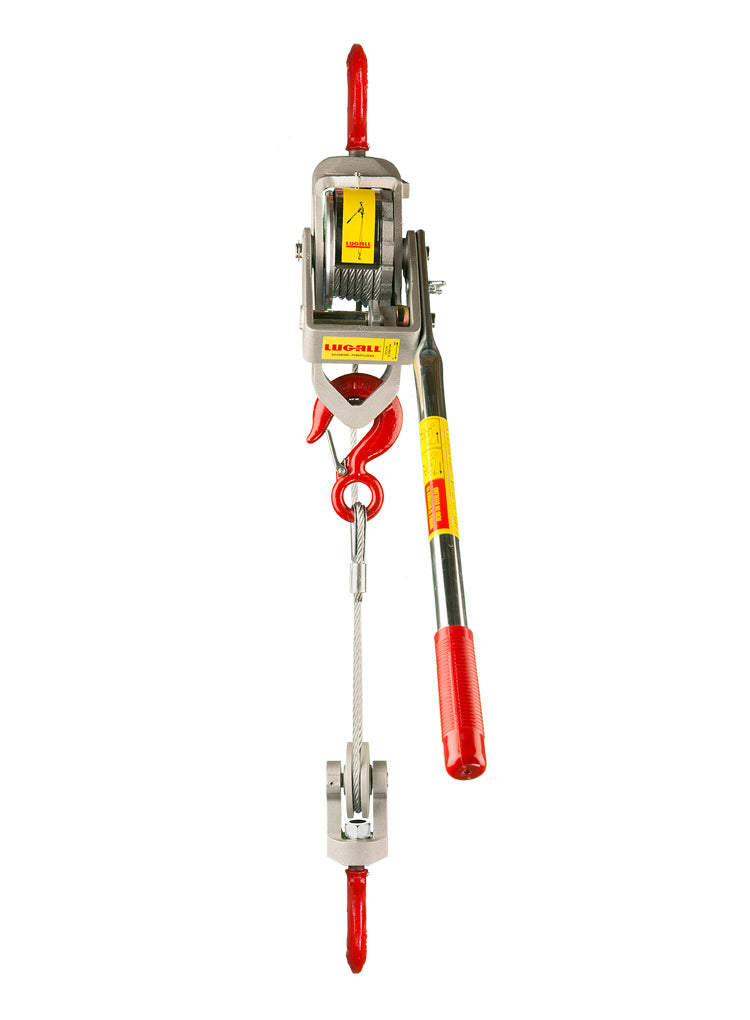

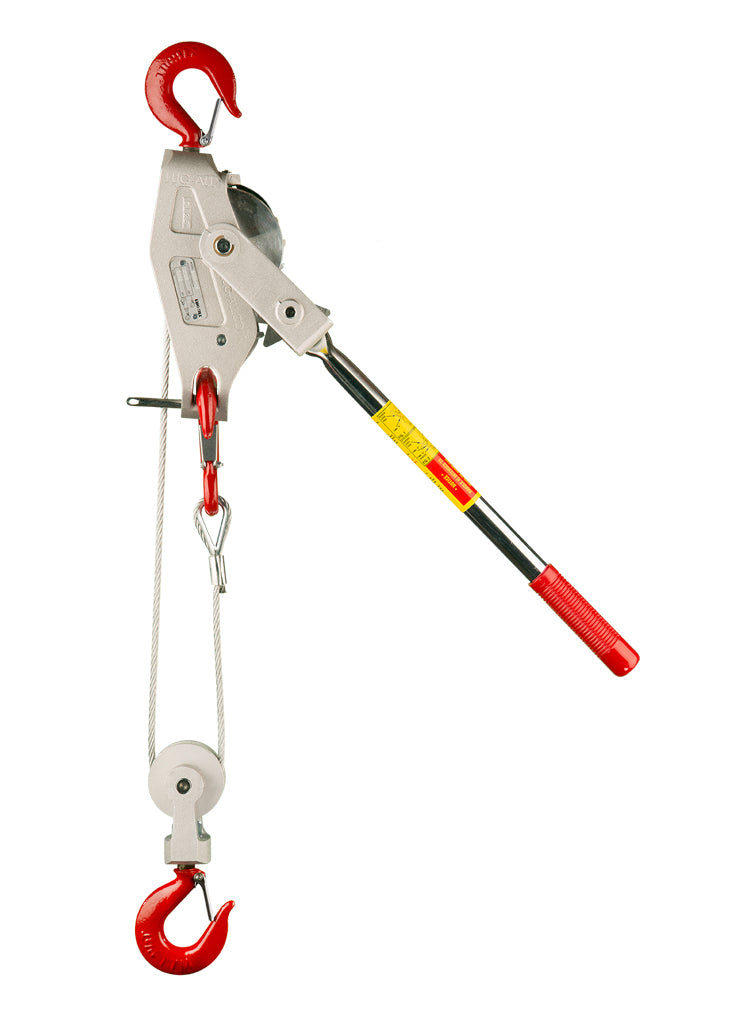

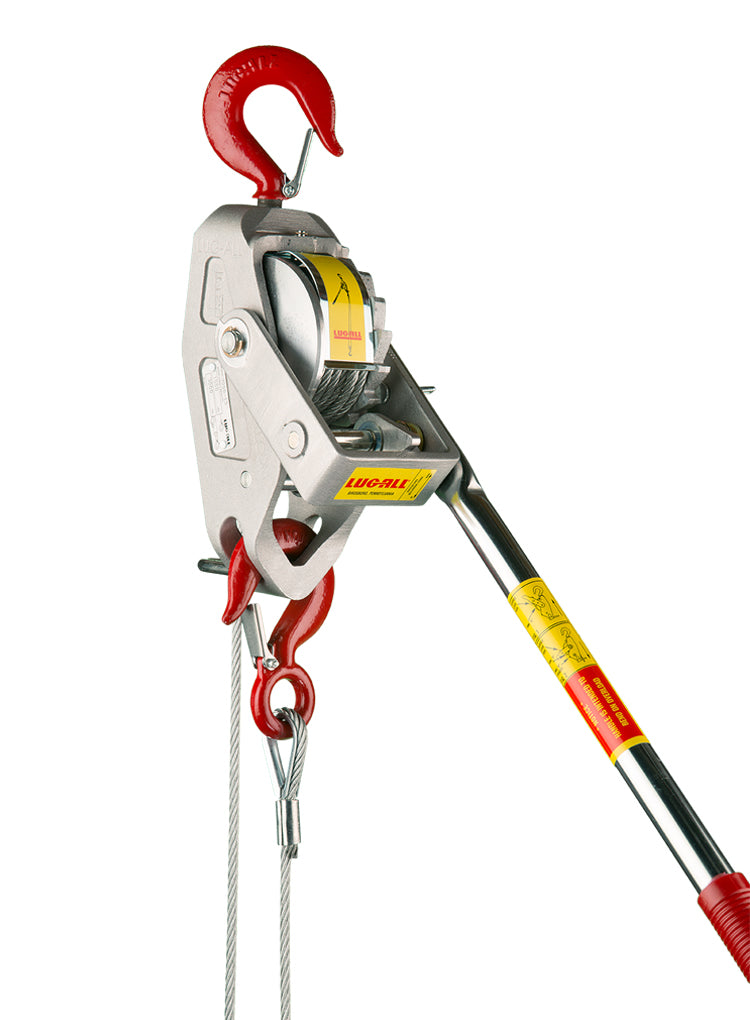

3000-15 - 1 1/2 Ton Cable Hoist
3000-15
$379.00Buying in bulk? Find a Sales Rep.
The Lug-All model 3000-15 is an industrial-grade 1-1/2-ton cable come along ratchet winch hoist featuring double or single line lift capabilities. When used as a single line hoist, this model has 15 feet of cable and a 1,500-pound capacity. As a double line hoist, this model has 7 feet 6 inches of cable and a 3,000-pound capacity. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. Lug-All cable hoists also include a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting the user and equipment.
Specs
| Part Number | 3000-15 |
| Capacity | 1 1/2 Ton |
| Net Weight | 10 LBS |
| Double Line Capacity | 3000 LBS |
| Double Line Lift | 7 FT 6IN |
| Single Line Capacity | 1500 LBS |
| Single Line Lift | 15 FT |
| Cable Diameter | 7/32" |










                 3000-15 Drawing (88.46 KB)
 3000-15 Drawing (88.46 KB)
